1.5v 2.5v 3v 3.3v 3.6v 6v 10mm KG-10PM20 planetary plastic gear motor with cross shaft, gear shaft

Name: 15v 25v 3v 33v 36v 6v 10mm KG10PM20 planetary plastic gear motor with cross shaft gear shaft
Brand: Kegu motor
Price: 10 USD

Quality 1.5v 2.5v 3v 3.3v 3.6v 6v 10mm KG-10PM20 planetary plastic gear motor with cross shaft, gear shaft wholesale

Brand Name : Kegu motor

Model Number : KG-10PM10

Certification : ISO,CE,ROSH

Place of Origin : CHINA

MOQ : 1PCS

Price : 10MM PLASTIC GEAR MOTOR

Payment Terms : T/T,Western Union,L/C

Supply Ability : 50000PCS/WEEK

Delivery Time : 25-30 DAYS

Contact Now

This is 10mm M10 and M20 brushed motor with 10mm plastic planetary gearbox,the
reduction ratio is 1/171,the shaft have + and gear type,if you need other size,the shaft
sizecan customized according your requirement,the motorscan production many different
parameters,we can according your requirement to customized.

Product Description

10mm plastic gearbox with M10 micro dc motor

M10 DC motor plastic gear 12v electric motor for door-lock

1.5v 2.5v 3v 3.3v 3.6v 6v 10mm KG-10PM20 planetary plastic gear motor with cross shaft, gear shaft

Volt	2.5v
No Load Speed	104rpm
Rated Speed	56rpm
Rated Torque	150g.cm
Application	Robot , door lock , toy, cabinet lock

SPECIFICATION:

1. Voltage: DC 1.5V
2. No load speed: 45±10%rpm
3. No load current: 0.032A
4. Diameter 10mm, length 20mm, shaft dia 1.5mm
5. Material: plastic gear and metal DC motor
6. Weight: 10g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)

Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque

* Low Noise

* Longer life time up to 200,000 times unlock

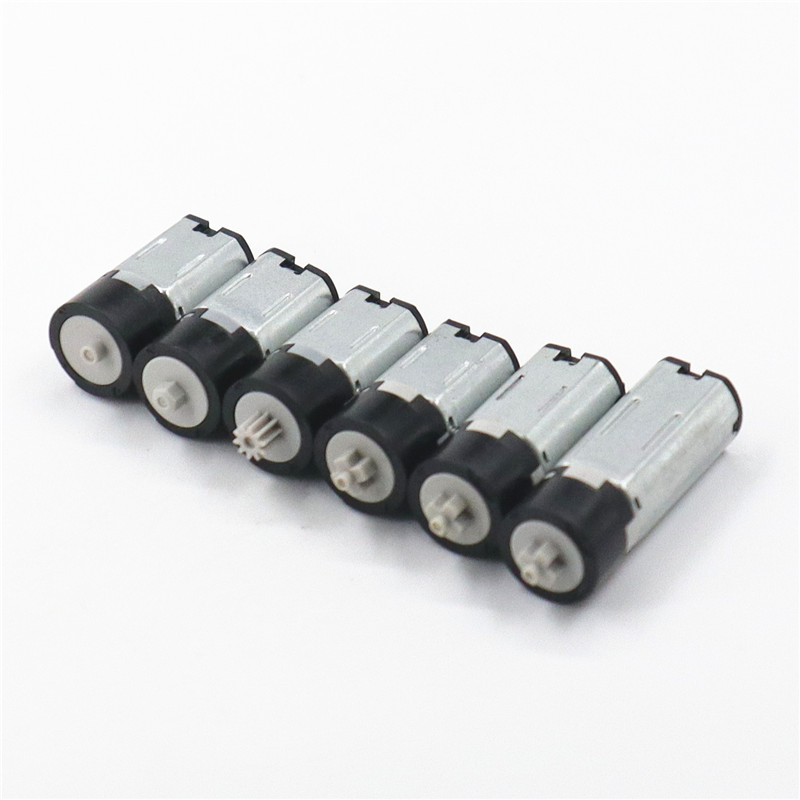

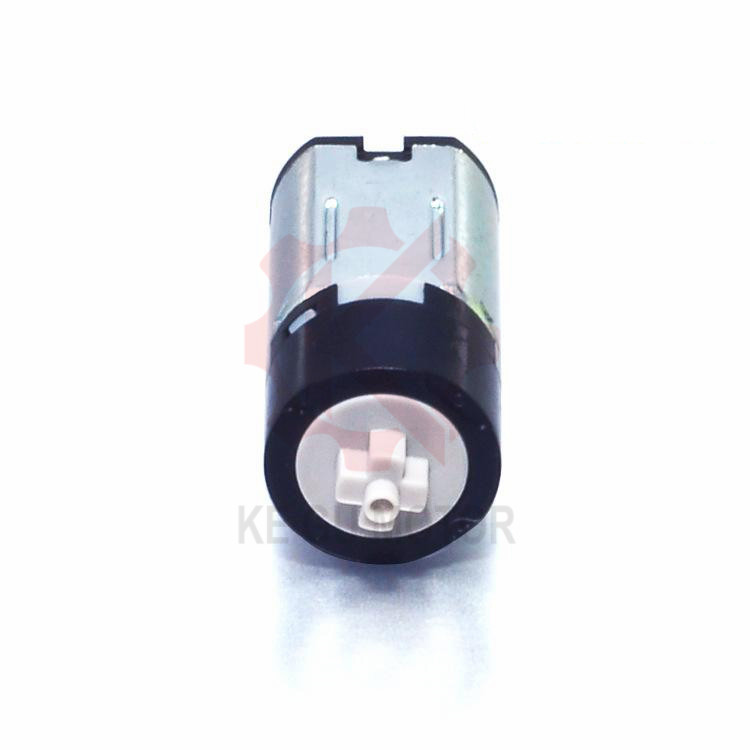

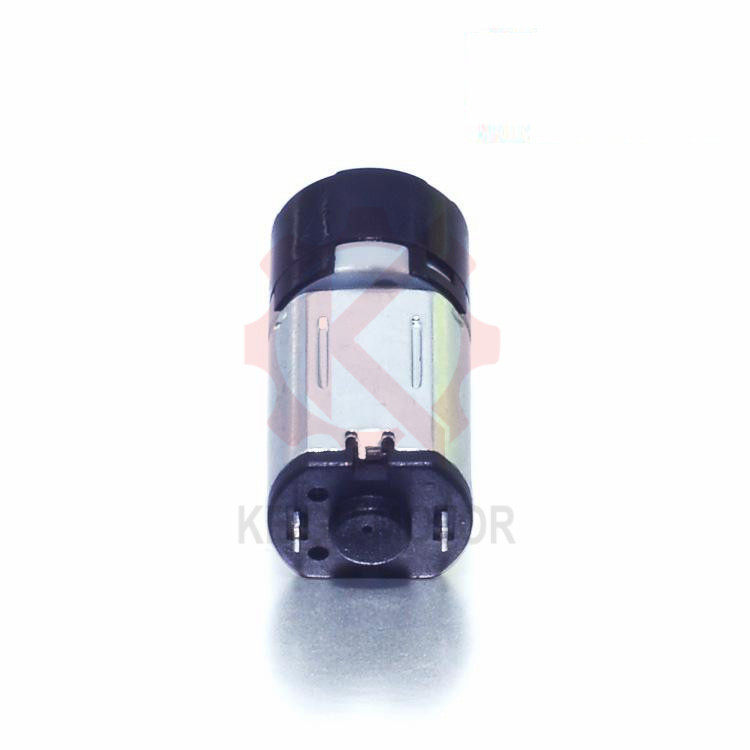

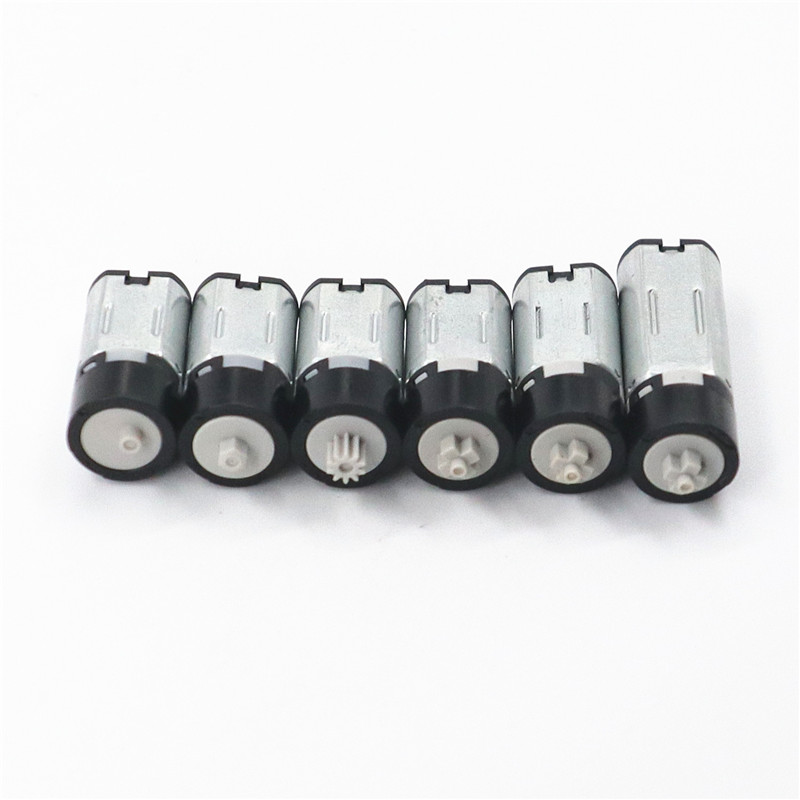

Detailed Images

This series of motors are used in intelligent switch, smart door lock, fingerprint lock driver.The control system of various locks and fingerprint lock can be controlled by mobile APP.

Size Information

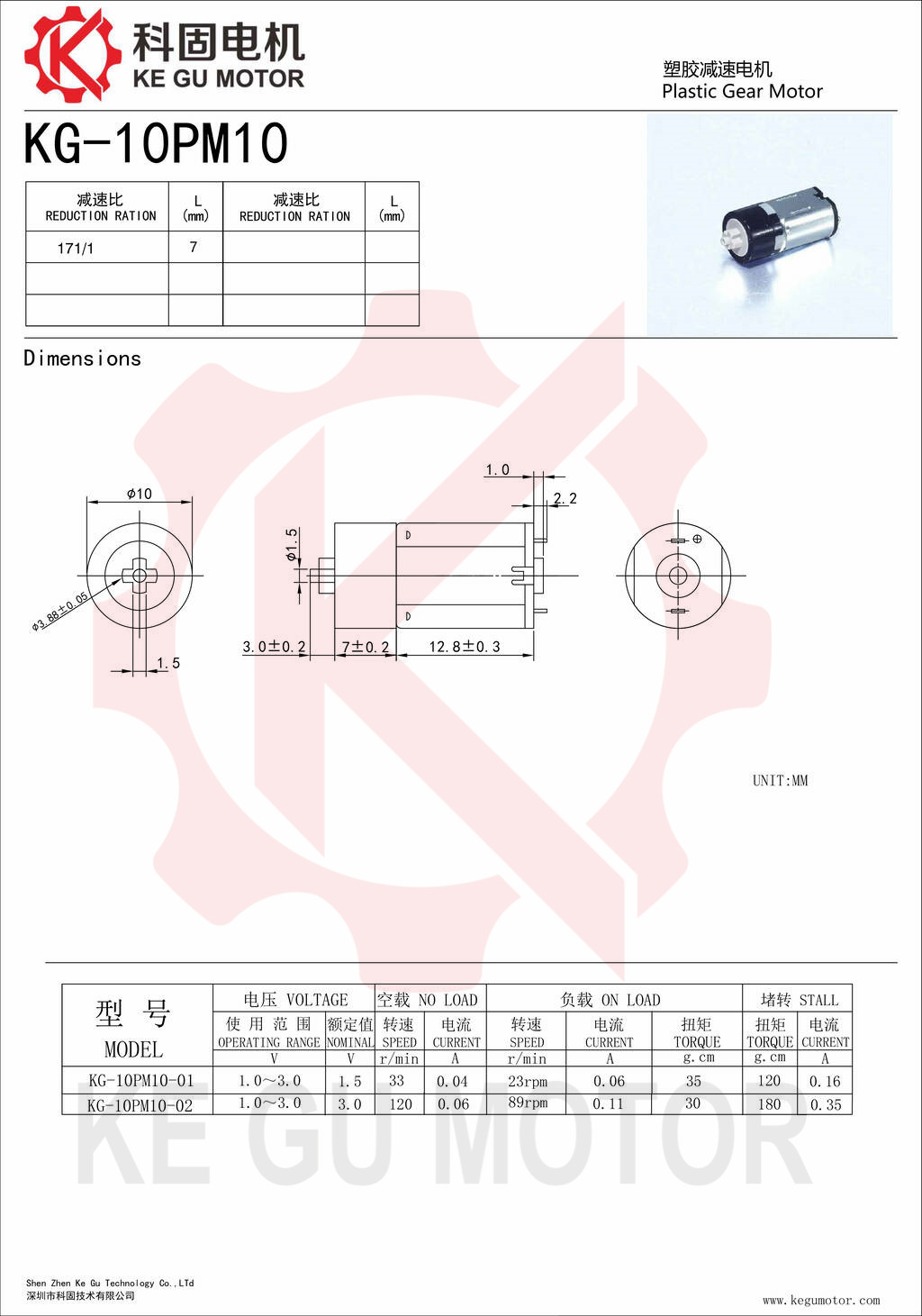

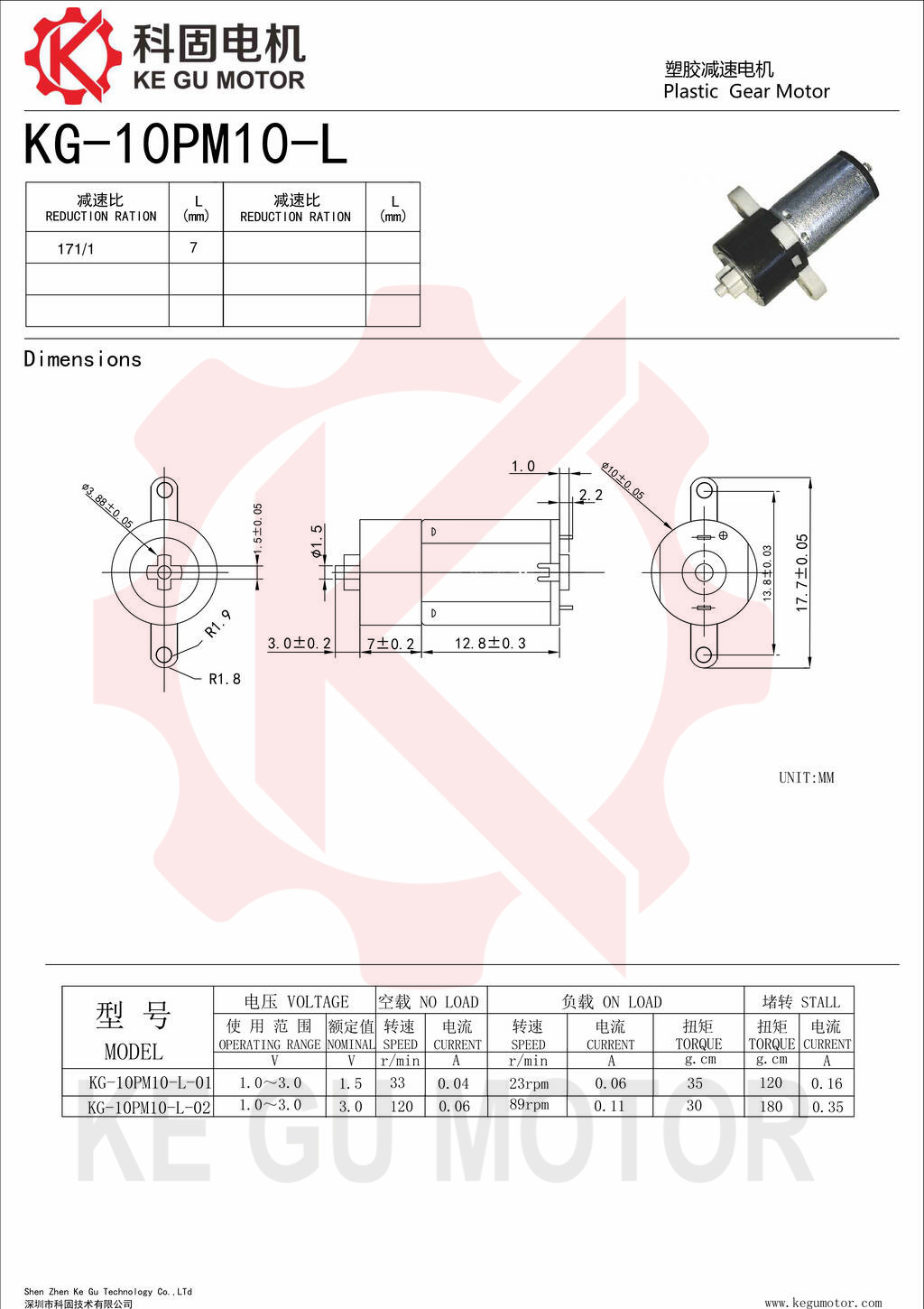

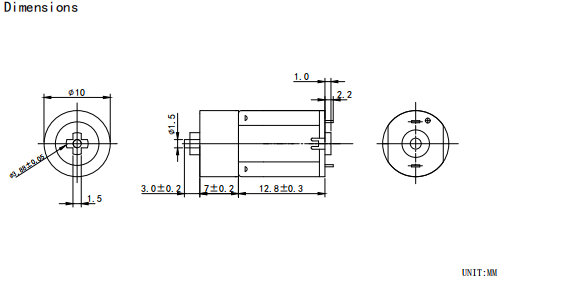

Drawing of 10mm gear motor

Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Recommended by seller

2.5V 12mm N20 dc gear motor, 12mm geared motor for intelligent lock

$12.07/Piece

2000 Pieces

low rpm 3v 6v 9v 12v dc 12mm N20 gear motor with encoder and gearbox

$12.10/Piece

10000 Pieces

planetary gearbox motor, 16mm dc gear motor with encoder

$2.50/Piece

1 Piece

12V 24V DC Electric Motor with 28MM Planetary Reduction Gearbox

$7.50/Piece

1 Piece

Customized high torque micro 13mm gear motor for electric lock,14mm gear motor for intelligent lock

$2.30/Piece

10000 Pieces

Long life time dc 12v 18v 24v dc brushless dia 36m DC Gear Brushless Motor BL3657

$7.20 - $22.00/Piece

1.0 Pieces

BL3657 DC Brushless Motor 12V 24V 36mm 4000rmp 5000rpm DC Brushless Motor

$7.20 - $22.00/Piece

10.0 Pieces

BL4260 BL4260i B4260M OD Diameter 42mm Small Inner Rotor built-in driver with hall sensor, Low Noise 12V 42MM BLDC Motor

$9.80 - $22.00/Piece

1000.0 Pieces

BL3650 36mm 12 volt dc brushless Motor 24v Brushless DC Motor for pump

$7.20 - $22.00/Piece

1.0 Pieces

12V Dia 28mm 4000rpm 5000rpm 6000rpm Inner Rotor BLDC DC Brushless Motor For Robot BL2838i

$4.20 - $9.50/Piece

1.0 Pieces

Kegu motor 22mm planetary gearbox 12v 24v DC Planetary Gear Motor

$4.91/Piece

1 Piece

Packing&Shipping

After Sales Service

The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.

So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.

Company Introduction

Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.

Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

Our Services & Strength

R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.

Provide customized, design, development, production and assembly services of micro gear transmission system.

Certifications

FAQ

Q:1.What kind of motors you can provide?

A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
